भूमिगत खाण टायर

LINGLONG Tyre Factory Supply Quality Underground Mine Tire from China directly. Linglong is a large-scale Underground Mine Tire manufacturer and supplier in China.

चौकशी पाठवा

उत्पादन वर्णन

Inquire Underground Mine Tire made in China. Linglong is an Underground Mining Tire manufacturer and supplier in China.

Underground mines provide the most extreme working conditions for both machines and people. To stand up to rockslides, floods and the heat encountered in ore extraction, the tires must be reliable in all conditions. They also need to be capable of bearing larger loads to cope with the productivity gains sought.

In such circumstance, the immobilisation of a machine for the replacement of a tire can have critical consequences, possibly causing the loss of half a day of work or more. Conscious of these situations, we developed a range of high-technology tires, with improved resistance to a wide range of damage risks and capable of carrying heavier and heavier loads.

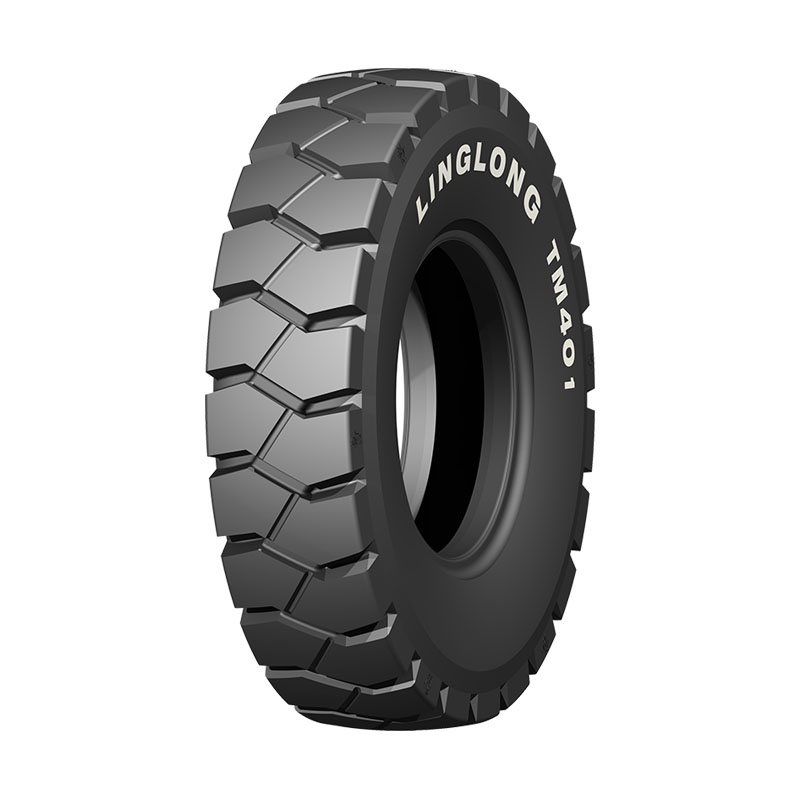

TM401

E-3/E-4  Bias

 ■ Rugged tread design provides traction and added cut protection

 ■ Underground dedicated standard tread compound, balancing heat and cutting resistance

 ■Special rubber compound protects against sidewall damage

Size

Ply

rating

TRA

code

Rim

Section

width

(mm)

Overall

diamter

（mm）

Tread

depth

(mm）

10km/h Type

Load

capacity

（kg）

Inflation

pressure

（kPa）

10.00-20 18 E-3 7.5 278  1073  32  3900  910  TT
12.00-20 20 E-3 8.5 315  1175  32  6150  830  TT
14.00-24 28 E-4 10.0  375  1420  53  13500  1000  TT
16.00-25 36 E-4 11.25/2.0 430  1550  65  13600  975  TL

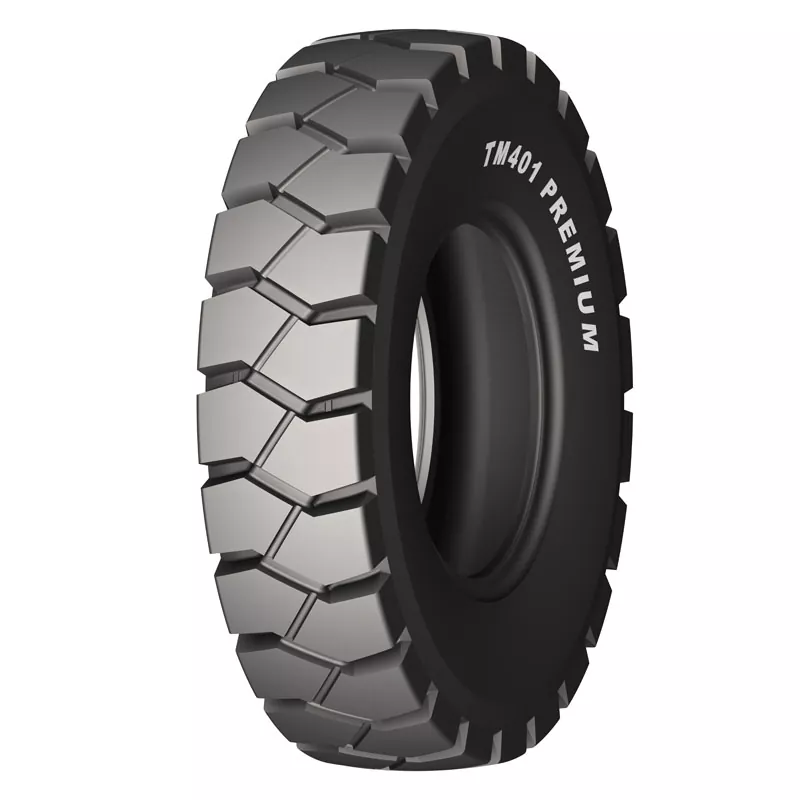

TM401 PREMIUM

E-3 Bias

■Rugged tread design provides traction and added cut protection

■Underground dedicated standard tread compound, balancing heat and cutting resistance

■Optimized contour design with lighter tire weight compared with TM401, which brings better purchasing economics

Size Ply
rating 		TRA
code 		Rim Section
width
(mm) 		Overall
diamter
(mm） 		Tread
depth
(mm） 		10km/h Type
Load
capacity
(kg） 		Inflation
pressure
(kPa）
10.00-20 18 E-3 7.5 278  1073  32  3900  910  TT

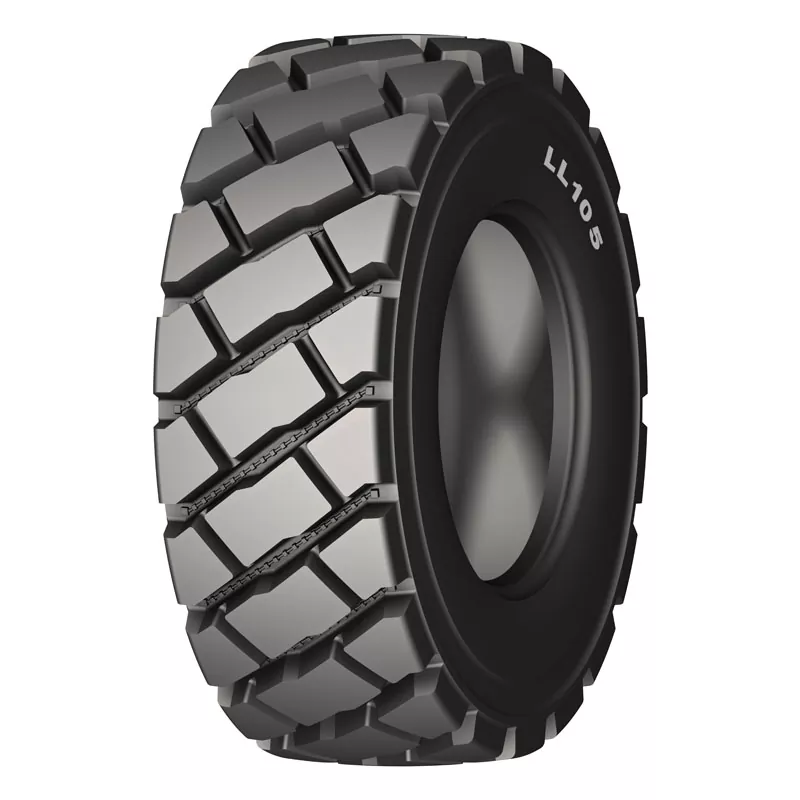

LL105

L-5 Bias

■Large and deep pattern design for excellent traction

■The design of stone discharge boss at the bottom of the pattern groove improves the self-cleaning ability of the pattern

■Special rubber compound protects against sidewall damage

Size Ply
rating 		TRA
code 		Rim Section
width
(mm) 		Overall
diamter
(mm） 		Tread
depth
(mm） 		10km/h Type
Load
capacity
(kg） 		Inflation
pressure
(kPa）
12-16.5 14 L-5 9.75 307 831 35 3075 620 TL

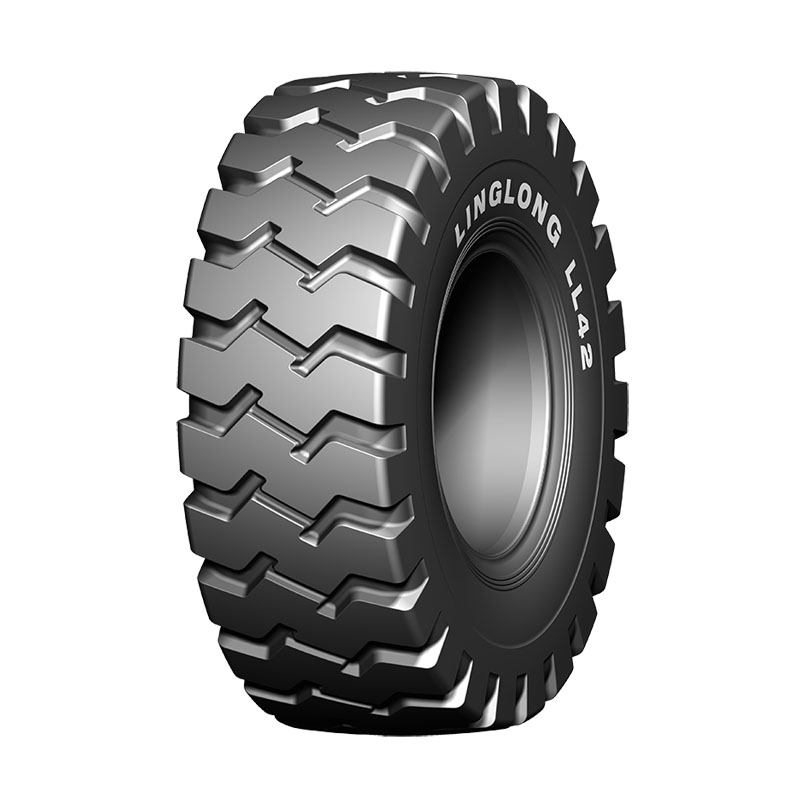

LL42

E-3   Bias

 ■Rugged tread design provides traction and added cut protection

 ■Underground dedicated standard tread compound, balancing heat and cutting resistance

Size

Ply

Rating

TRA

Code

Rim

Section

Width

(mm)

Overall

Diameter

(mm)

Tread

Depth

(mm)

10km/h Type
Load
Capacity
（kg） 		Inflation
Pressure
（kPa）
14.00-24 28 E-3 10.0 375 1370 27 10000 925 TT

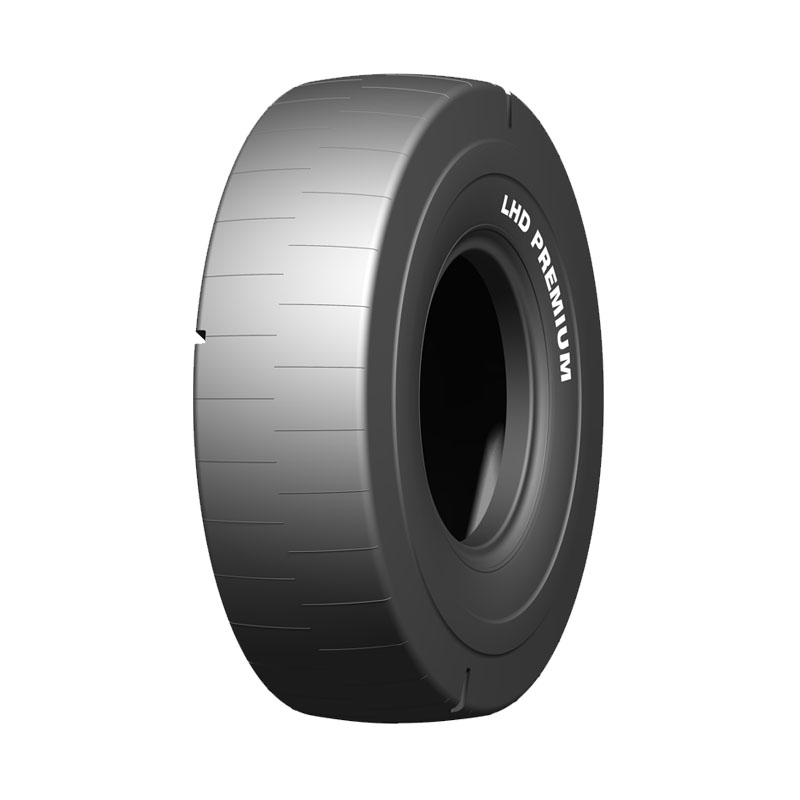

LHD PREMIUM

L-4S/L-5S  Bias

 ■Smooth tread design meets severe road conditions

 ■Excellent performance in hard rock underground mines

 ■Extra heavy sidewall design resists cuts and snags

Size

Ply

 rating

TRA

code

Rim

Section

width

(mm)

Overall d

iamter

（mm）

Tread

depth

(mm）

10km/h Type

Load

capacity

（kg）

Inflation

pressure

（kPa）

10.00-20 16 L-4S 7.5 278  1073  30  3535  770  TT
12.00-24 20 L-5S 8.5 315  1260  45  6900  825  TT
17.5-25 20 L-5S 14.00/1.5 445  1400  65  8250  575  TT
24 L-5S 14.00/1.5 445  1400  65  9250  700  TT
32 L-5S 14.00/1.5 445  1400  65  11700  830  TT

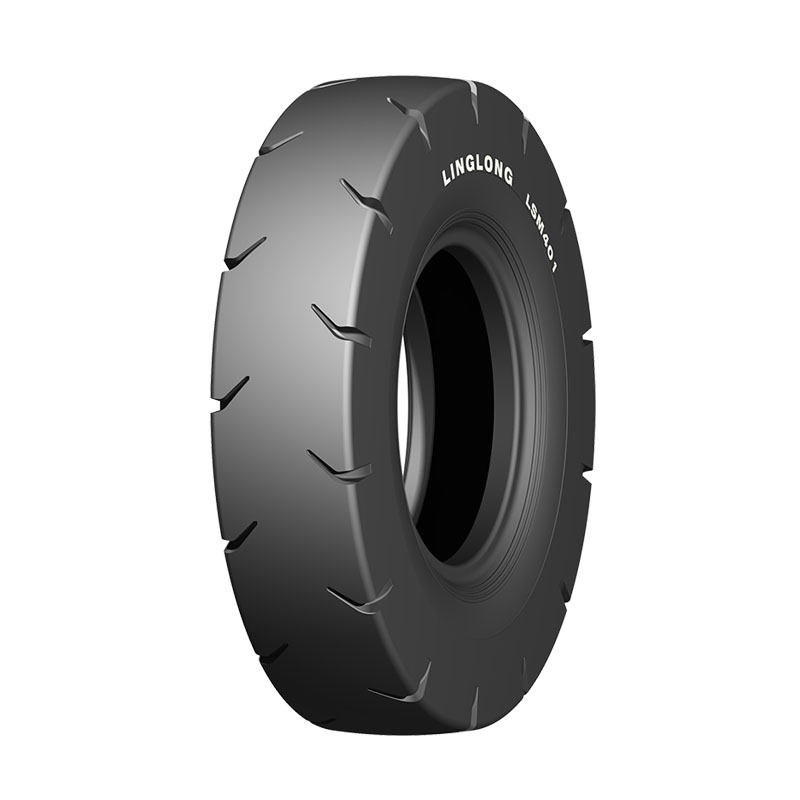

LSM401

L-4S  Bias

 ■Smooth tread design eliminates lug tearing for longer wear

 ■Excellent performance in hard rock underground mines

 ■Special tear-resistant resin application enhances the cutting resistance of the tread

Size

Ply

rating

TRA

code

Rim

Section

width

(mm)

Overall

diamter

（mm）

Tread

depth

(mm）

10km/h Type

Load

capacity

（kg）

Inflation

pressure

（kPa）

10.00-20 14 L-4S 7.5 278  1073  35  3260  670  TT
16 L-4S 7.5 278  1073  35  3535  770  TT
10.00-20 14 L-4S+ 7.5 278  1073  45  3260  670  TT
16 L-4S+ 7.5 278  1073  45  3535  770  TT
12.00-24 20 L-4S 8.5 315  1275  40  6900  825  TT
24 L-4S 8.5 315  1275  40  7500  975  TT

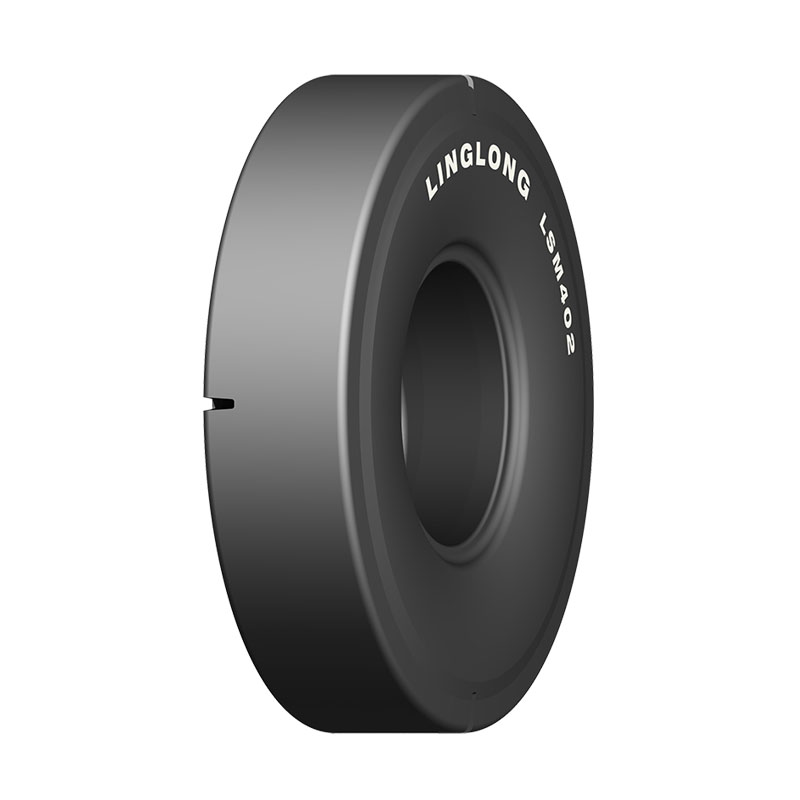

LSM402

L-5S/L-5S+   Bias

 ■Special tear-resistant resin application enhances the cutting resistance of the tread

 ■Excellent performance in hard rock underground mines

 ■Extra heavy sidewall design resists cuts and snags

Size

Ply

rating

TRA

code

Rim

Section

width

(mm)

Overall

diamter

（mm）

Tread

depth

(mm）

10km/h Type

Load

capacity

（kg）

Inflation

pressure

（kPa）

9.00-20 14 L-5S 7.0 255  1045  35  4375  725  TT
16 L-5S 7.0 255  1045  35  4750  825  TT
10.00-20 14 L-5S 7.5 278  1073  45  3260  670  TT
16 L-5S 7.5 278  1073  45  3535  770  TT
12.00-20 18 L-5S 8.5 315  1175  60  5800  775  TT
20 L-5S 8.5 315  1175  60  6150  830  TT
12.00-24 16 L-5S 8.5 315  1275  55  6150  675  TT
18 L-5S 8.5 315  1275  55  6500  750  TT
20 L-5S 8.5 315  1275  55  6900  825  TT
24 L-5S 8.5 315  1275  55  7500  975  TT
14.00-24 28 L-5S 10.0 375  1420  65  10000  930  TT
32 L-5S 10.0 375  1420  65  10900  1050  TT
16.00-25 32 L-5S 11.25/2.0 430  1550  75  12500  875  TL
17.5-25 20 L-5S+ 14.00/1.5 445  1400  75  8250  575  TT
24 L-5S+ 14.00/1.5 445  1400  75  9250  700  TT/TL
32 L-5S+ 14.00/1.5 445  1400  75  11700  830  TT/TL
20.5-25 32 L-5S 17.00/2.0 520  1550  70  11500  625  TL
23.5-25 32 L-5S 1950/2.5 595  1675  80  13600  550  TL
18.00-25 32 L-5S 13.00/2.5 500  1675  85  15000  750  TL
40 L-5S 13.00/2.5 500  1675  85  17000  950  TL
26.5-25 36 L-5S 22.00/3.0 675  1800  85  18000  600  TL
36 L-5S+ 22.00/3.0 675  1800  95  18000  600  TL

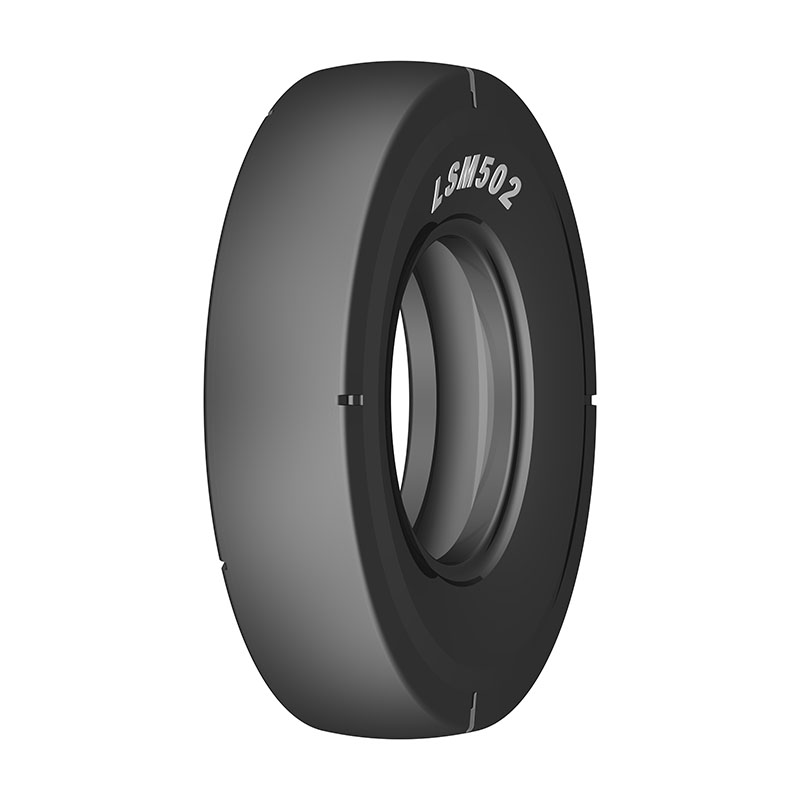

LSM502

L-5S   Bias

 ■Smooth tread design eliminates lug tearing for longer wear

 ■Excellent performance in hard rock underground mines

 ■Extra heavy sidewall resists cuts and snags

Size

Ply

rating

TRA

code

Rim

Section

width

(mm)

Overall

diamter

（mm）

Tread

depth

(mm）

10km/h Type

Load

capacity

（kg）

Inflation

pressure

（kPa）

12.00-24 24 L-5S 8.5 315  1275  65  7500  975  TT
17.5-25 32 L-5S 14.00/1.5 445  1400  75  11700  830  TT
